Stikala - switch

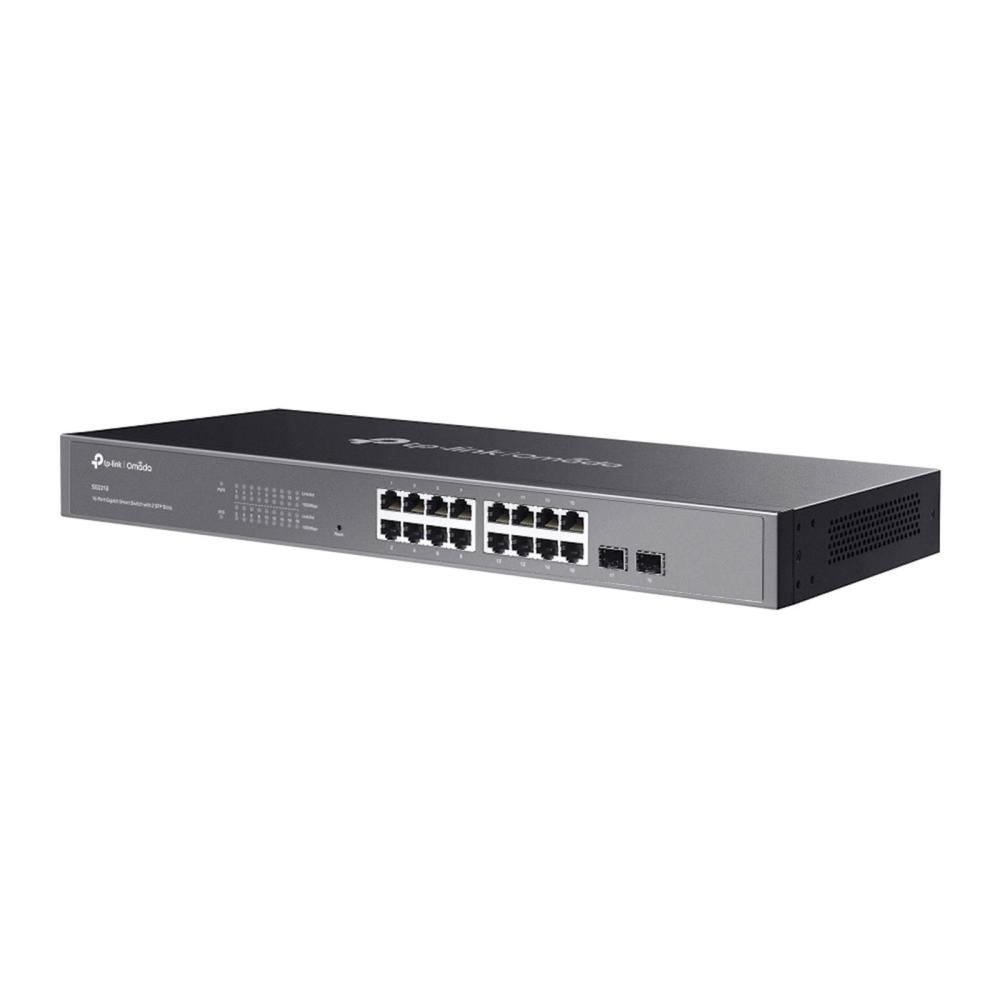

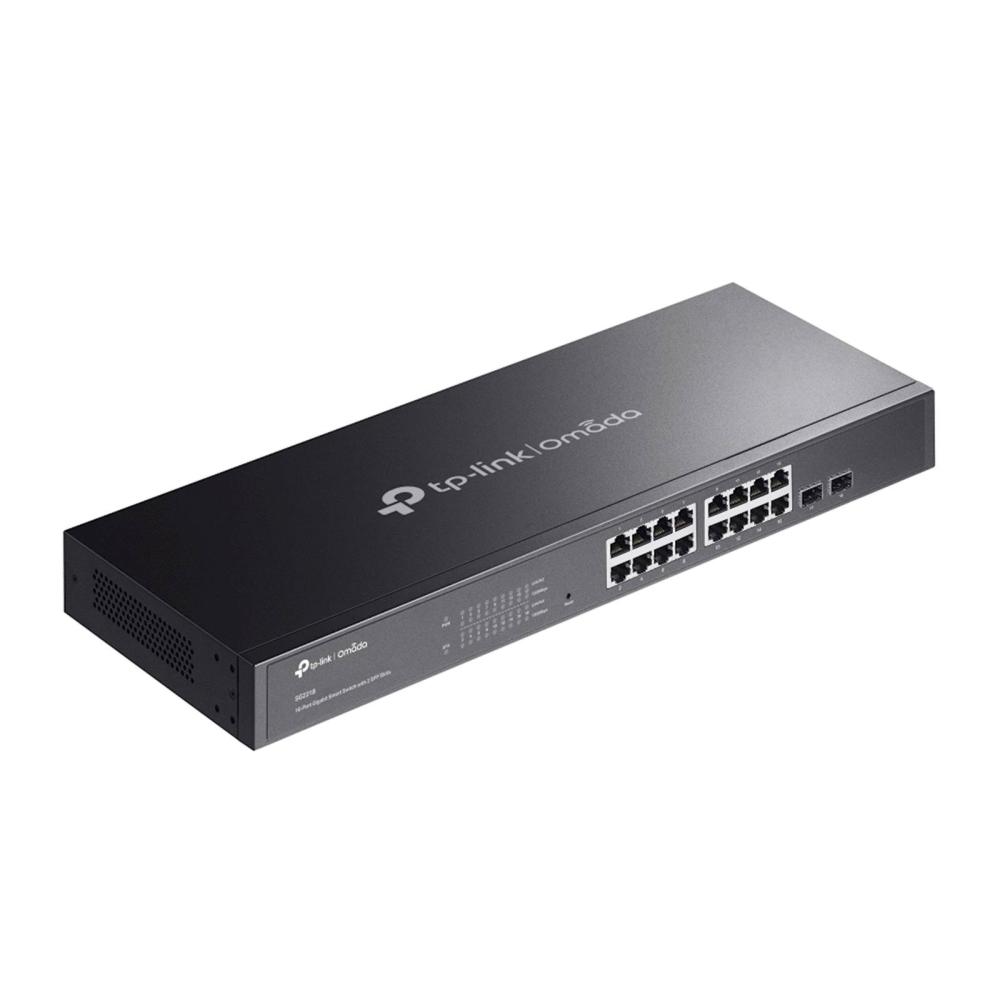

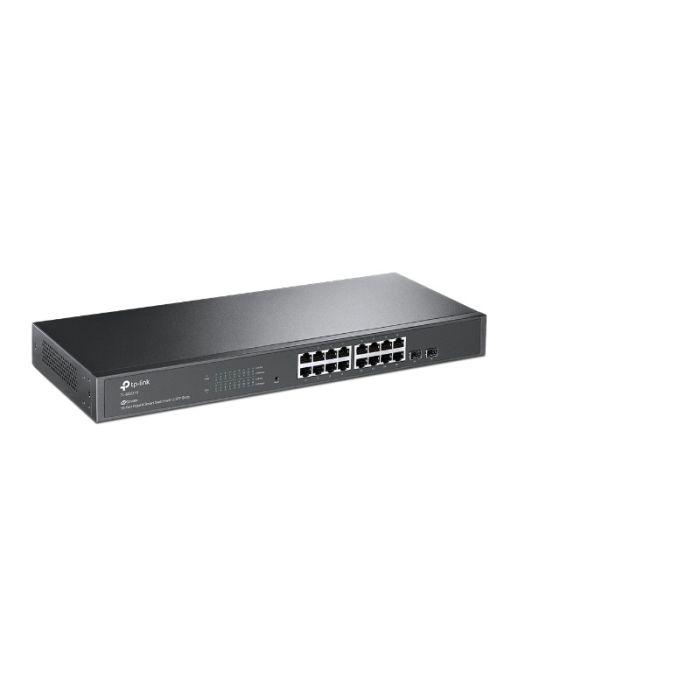

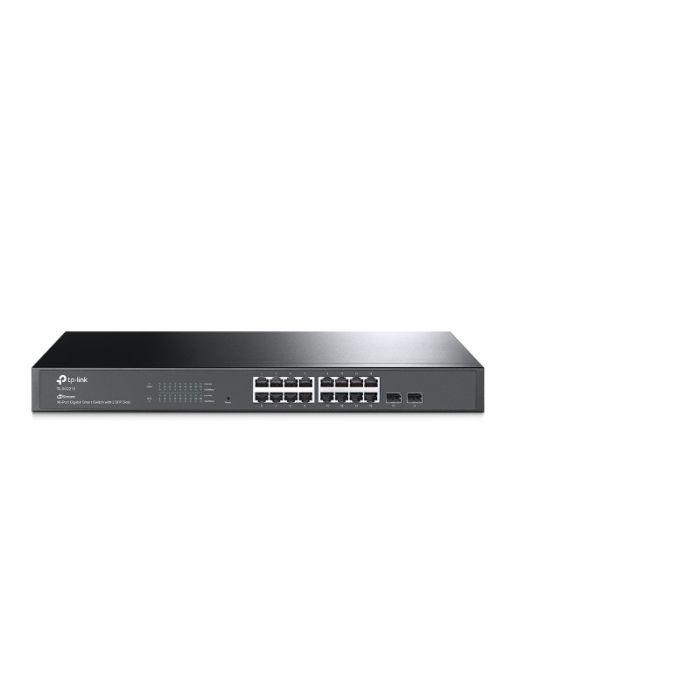

TP-LINK TL-SG2218 16-port gigabit Smart 2x SFP rack mrežno stikalo-switch

Na zalogi pri dobavitelju
148,41 €
Količina
V košarico
Na seznam želja

TP-LINK TL-SG2218 16-port gigabit 16?10/100/1000 Smart 2x SFP mrežno stikalo-switch ponuja odlične zmožnosti hitrega procesiranja podatkov skozi 16-portne gigabitne SFP reže. Mrežno stikalo ima centrilizirano upravljanje v oblaku in inteligentno spremljanje, saj je integriran v Omada SDN (ZTP). Uporablja se centralizirano upravljanje, preko oblaka in Omada aplikacije za neverjetno zanesljivo in enostavno upravljanje.

TP-LINK TL-SG2218 uporablja statično usmerjanje: pomaga usmerjati notranji promet za učinkovitejšo uporabo omrežnih virov.
Varnostne strategije: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication in še več.
Optimizirajte glasovne in video aplikacije: L2/ L3/ L4 QoS in IGMP.
Samostojno upravljanje: splet, CLI (Telnet, SSH), SNMP, RMON in Dual Image prinašajo zmogljivosti upravljanja.

Programsko definirano omrežje (SDN) z dostopom v oblaku
Omadina programsko definirana mreža (SDN) vključuje omrežne naprave, vključno z dostopnimi točkami, stikali in prehodi, kar zagotavlja 100% centralizirano upravljanje v oblaku. Omada ustvari zelo razširljivo omrež je, ki ga nadzoruje en sam vmesnik.

Napredne funkcije L3
Podprto je veliko funkcij L2 + in L3, ki pomagajo zgraditi zelo razširljivo in robustno omrežje, ki zagotavlja zanesljivo in učinkovito rešitev za podjetja, kampuse in ponudnike internetnih storitev.



Podatki proizvajalca:
TP-Link Networks Hungary Kft Közraktár u. 30 Budapest, HU-1093 Madžarska sales.hu@tp-link.com
Specifikacija artikla
Proizvajalčeva kodaTL-SG2218
EAN koda6935364006419
ProizvajalecTP-LINK
Namestitev:rack
Vrsta stikala:Smart
Vmesniki:16x 10/100/1000 Mbps RJ45, 2x gigabit SFP
Hitrost:10/100/1000 Mbps
Zmogljivost:prepustnost: 36 Gbps; število paketov na sekundo: 26,8 MBps
Dimenzije: (SxVxG)440 × 180 × 44 mm
Garancija36 mesecev
Dodatno:

Delovanje
Preklopna zmogljivost: 36 Gbps
Hitrost posredovanja paketov: 26,8 Mpps
Tabela naslovov: MAC 8K
Jumbo Frame: 9 KB

Programske lastnosti
802.1p CoS/DSCP priority
Queue scheduling
SP (Strict Priority)
WRR (Weighted Round Robin)
SP+WRR
Bandwidth Control
Port/Flow based Rating Limiting
Smoother Performance
Action for Flows
Mirror (to supported interface)
Redirect (to supported interface)
Rate Limit
QoS Remark

L2 and L2+ Features
Link Aggregation
Static link aggregation
802.3ad LACP
Up to 8 aggregation groups and up to 8 ports per group
Spanning Tree Protocol
802.1d STP
802.1w RSTP
802.1s MSTP
STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect
Loopback Detection
Port-based
VLAN based
Flow Control
802.3x Flow Control
HOL Blocking Prevention
Mirroring
Port Mirroring
CPU Mirroring
One-to-One
Many-to-One
Tx/Rx/Both

L2 Multicast
Supports 511 (IPv4, IPv6) IGMP groups
IGMP Snooping
IGMP v1/v2/v3 Snooping
Fast Leave
IGMP Snooping Querier
IGMP Authentication
IGMP Authentication
MVR
MLD Snooping
MLD v1/v2 Snooping
Fast Leave
MLD Snooping Querier
Static Group Config
Limited IP Multicast
Multicast Filtering: 256 profiles and 16 entries per profile

VLAN
VLAN Group
Max 4K VLAN Groups
802.1q Tagged VLAN
MAC VLAN: 12 Entries
Protocol VLAN: Protocol Template 16, Protocol VLAN 16
GVRP
VLAN VPN (QinQ)
Port-Based QinQ
Selective QinQ
Voice VLAN

Access Control List
Time-based ACL
MAC ACL
Source MAC
 Destination MAC
VLAN ID
User Priority
Ether Type
IP ACL
Source IP
Destination IP
Fragment
IP Protocol
TCP Flag
TCP/UDP Port
DSCP/IP TOS
User Priority
Combined ACL
Packet Content ACL
IPv6 ACL
Policy
Mirroring
Redirect
Rate Limit
QoS Remark
ACL apply to Port/VLAN

Security
IP-MAC-Port Binding
DHCP Snooping
ARP Inspection
IPv4 Source Guard
IPv6-MAC-Port Binding
DHCPv6 Snooping
ND Detection
IPv6 Source Guard
DoS Defend
Static/Dynamic Port Security
Up to 64 MAC addresses per port
Broadcast/Multicast/Unicast Storm Control
kbps/ratio/pps control mode
IP/Port/MAC based access control
802.1X
Port based authentication
Mac based authentication
VLAN Assignment
MAB
Guest VLAN
Support Radius authentication and
accountability
AAA (including TACACS+)
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv1/SSHv2

IPv6
IPv6 Dual IPv4/IPv6
Multicast Listener Discovery (MLD) Snooping
IPv6 ACL
IPv6 Interface
Static IPv6 Routing
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
IPv6 applications
DHCPv6 Client
Ping6
Tracert6
Telnet (v6)
IPv6 SNMP
IPv6 SSH
IPv6 SSL
Http/Https
IPv6 TFTP

L3 Features
16 IPv4/IPv6 Interfaces
Static Routing
48 static routes
Static ARP
316 ARP Entries
Proxy ARP
Gratuitous ARP
DHCP Server
DHCP Relay
DHCP L2 Relay

Management
Web-based GUI
Command Line Interface (CLI) through console port, telnet
SNMPv1/v2c/v3
Trap/Inform
RMON (1, 2, 3, 9 groups)
SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP AutoInstall
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
Password Recovery
SNTP
System Log

Advanced Features
Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
ZTP (Zero-Touch Provisioning)*

varnostTC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect
